Used Stainless Steel Slitting+Banding Line
650mm x 4mm
F&P
A Quick Tool Change Slitting Line
(Manual Tooling Transfer Unit)
Used Stainless Steel Slitting + Banding line.
LINE GENERAL DESCRIPTION
Process Material: Stainless Steel - AISI 304, 340
Maximum tensile strength: 600 N/mm2
Maximum yield strength: 280 N/mm2
Material thickness range: .4 ÷ 4mm
Entry coil width: 100 ÷ 650mm
Max. entry coil weight (decoiler): 10 Tonne
Max. exit coil weight (recoiler): 10 Tonne
Max. entry coils OD (at decoiling): 2000mm **
Max. exit coils OD (at recoiling): 2000mm **
Nominal entry coil ID (at decoiling): 508mm and 610mm (using additional drum segments)
Nominal exit coils ID (at recoiling): 406mm and 508mm (using additional drum segments)
Max. line speed: 200m / min (depending from material thickness and hardness)
Material threading speed: 10m / min
Number of slits possible >
- 30 at thickness: .4mm
- 20 at thickness: 1.5mm
- 25 at thickness: 2mm
- 7 at thickness: 4mm
Min. slit coil width: 10mm (depending from material thickness and hardness)
** for the banding system it is limited to 1400mm ^
EQUIPMENT LIST

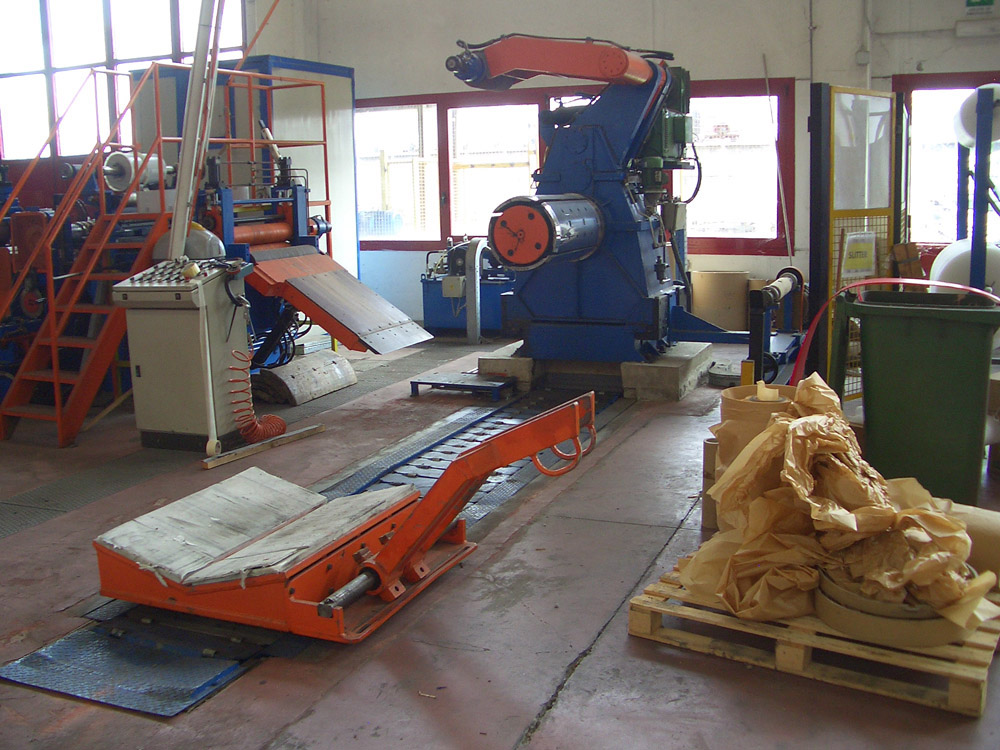

Item 1.1 Coil car – under floor, with stop arms

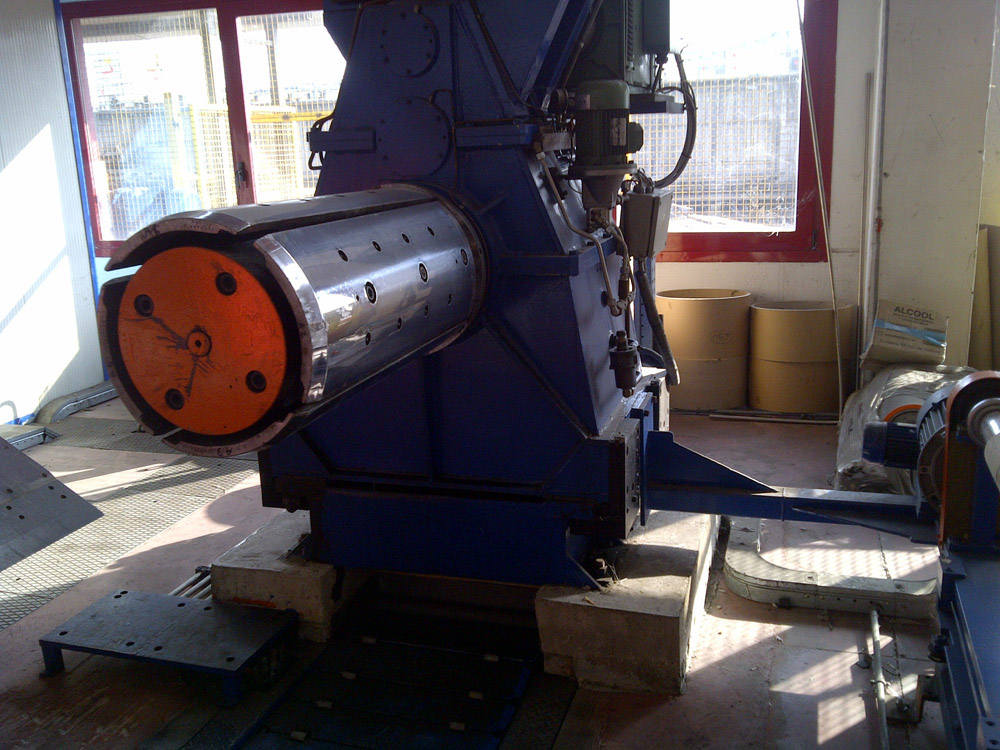

Item 2.1 Powered decoiler with snubber roll arm, on sliding base / additional drum segments for 610mm
Item 2.3 Paper rewinder
Item 3.1 Peeler station (telescopic table)
Item 3.2 2 Pinch rolls
Item 3.4 Film dispenser with shaft on upper side
Item 4.1 Threading roller table

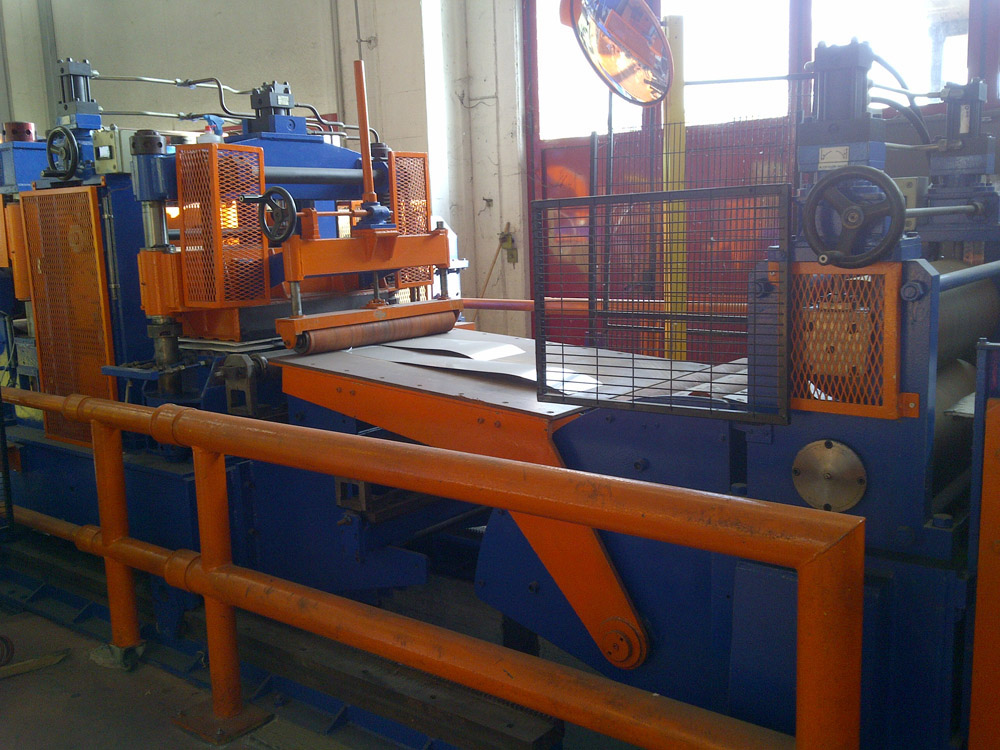

Item 4.3 Shear entry guide

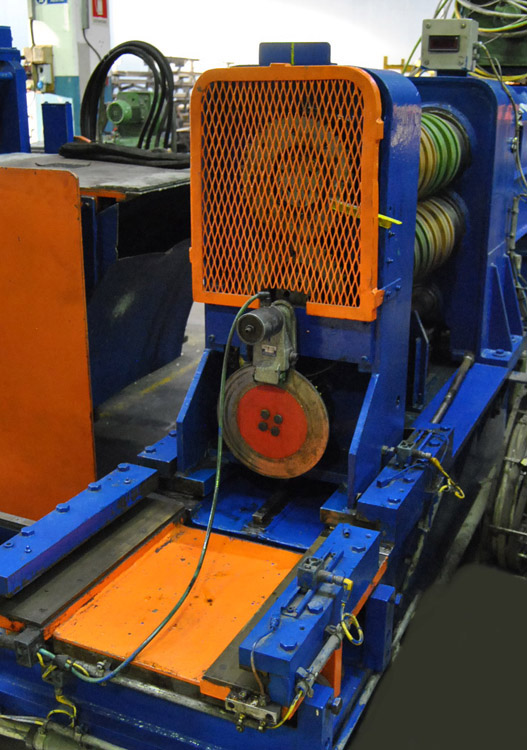

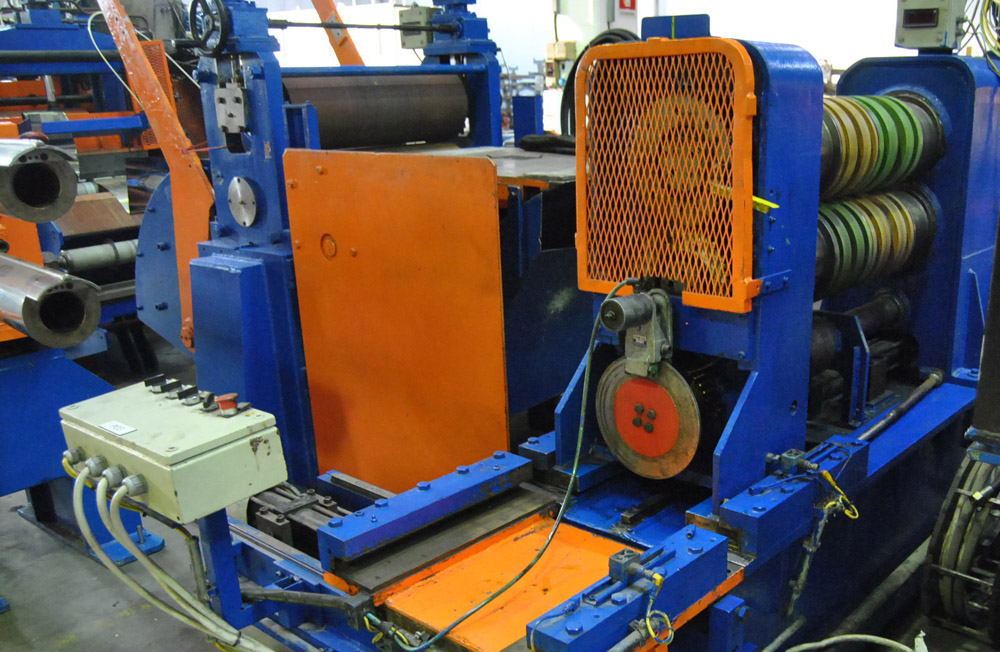

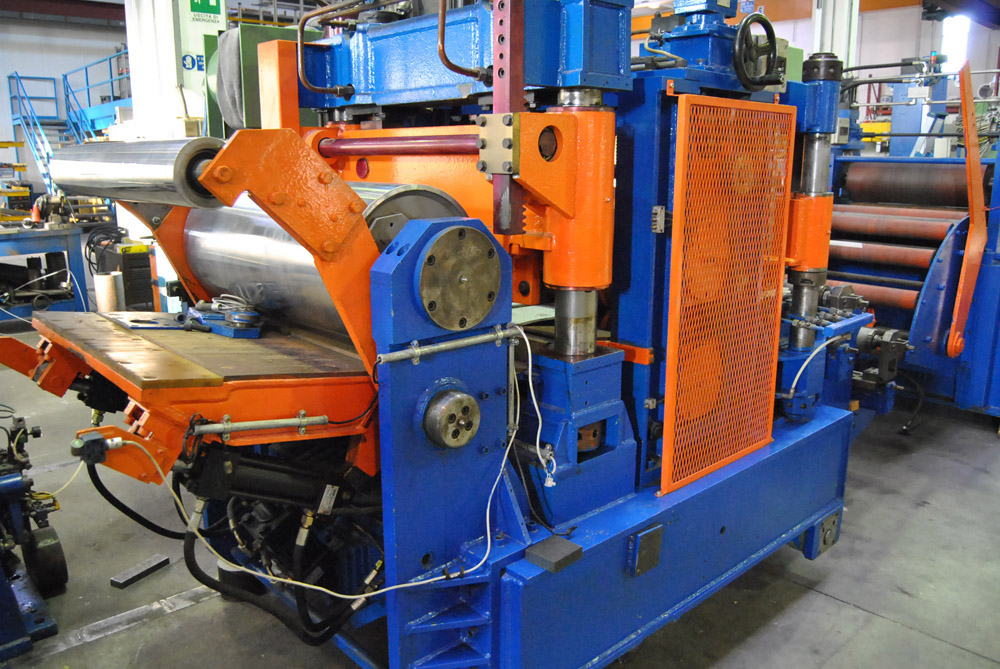

Item 4.4.1 Slitter Head – shaft diameter 160mm

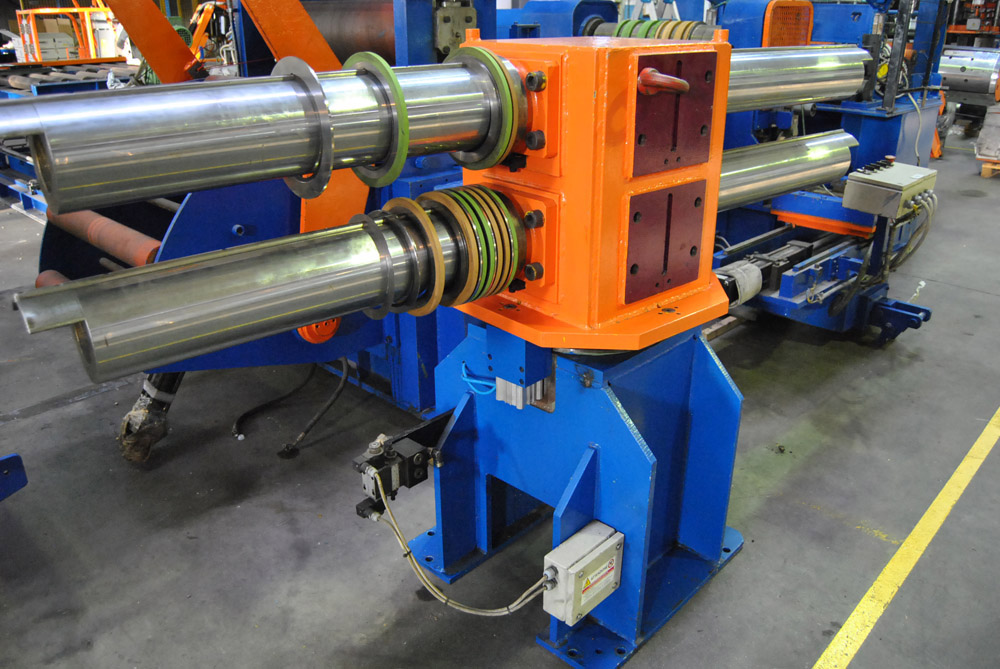

Item 4.6 2-Arm tooling exchange turnstile (manual)
Item 4.7 Pit overrun table
Item 4.8 Scrap recoiler
Item 4.8.1 Extraction pinch rolls

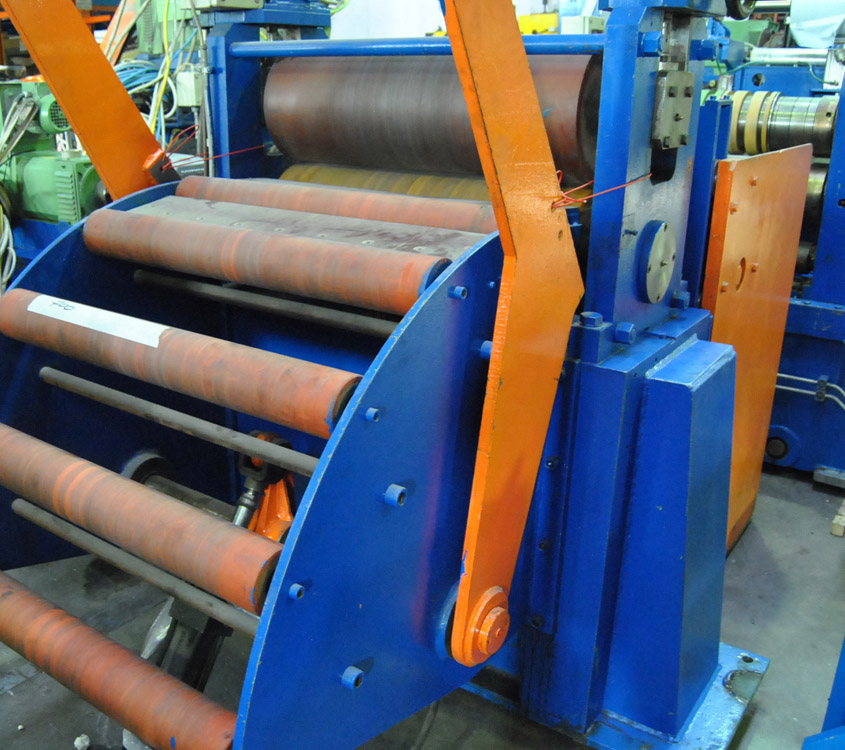

Item 4.9 Quadrant rolls at loop pit entry, with hydraulic table
Item 5.1 Movable powered cart for over-pit translation
Item 5.2 Tension unit, with felt and rolls-arc

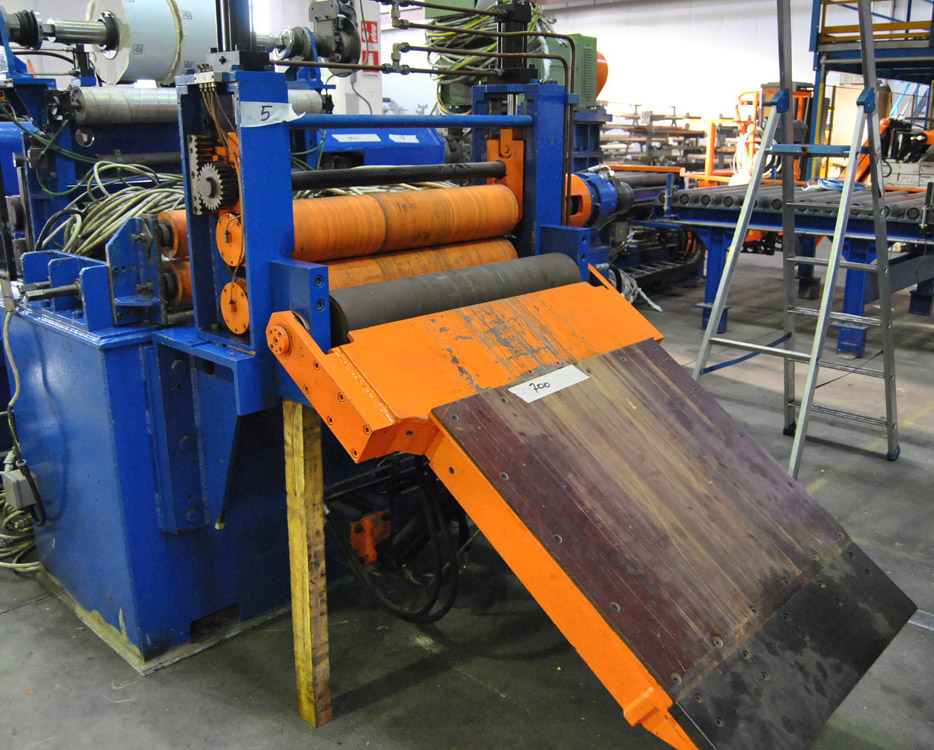

Item 5.3 Tension powered pinch rolls
Item 5.4 Hydraulic crop shear
Item 5.6 Deflector, “S” rolls-unit

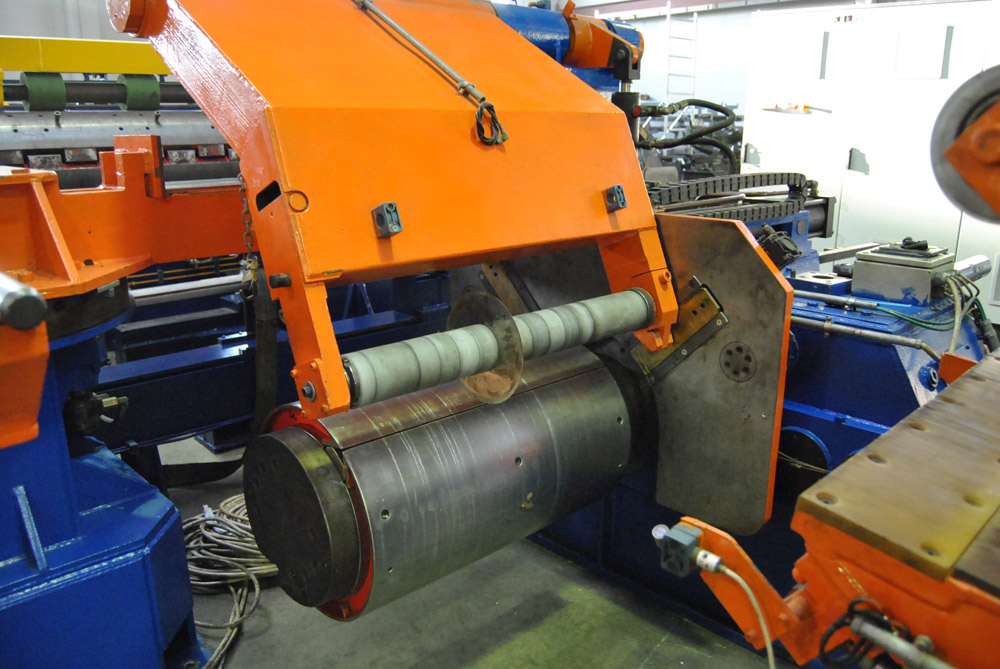

Item 6.1 Recoiler with overarm and additional drum segments for 508mm
Item 6.2 Coil push-off plate
Item 7.1 Coil off-loading car – under floor, with stop arms

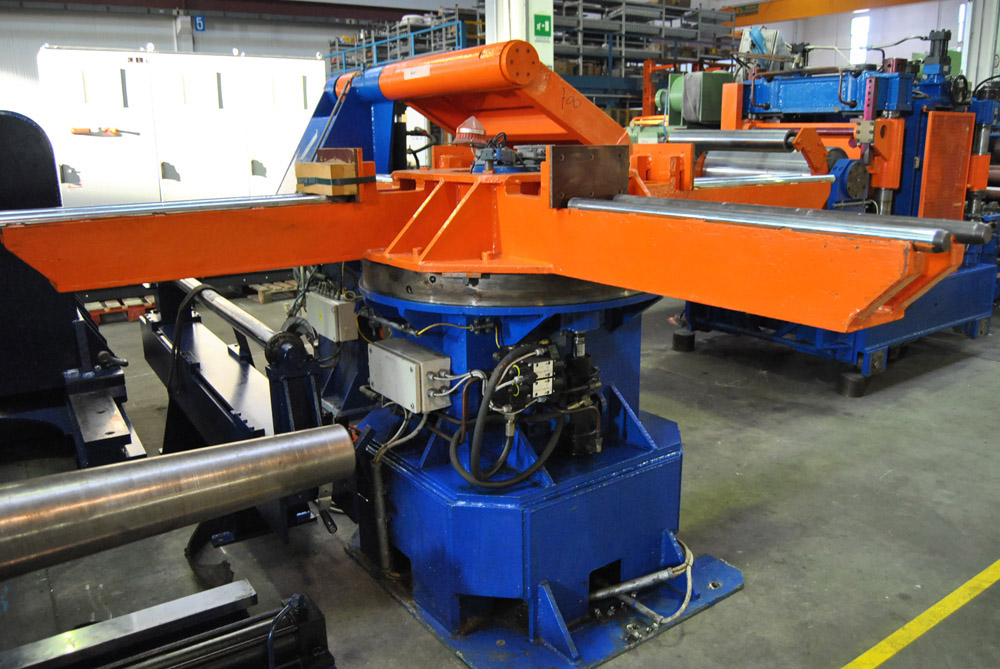

Item 7.3 4-Arm powered turnstile

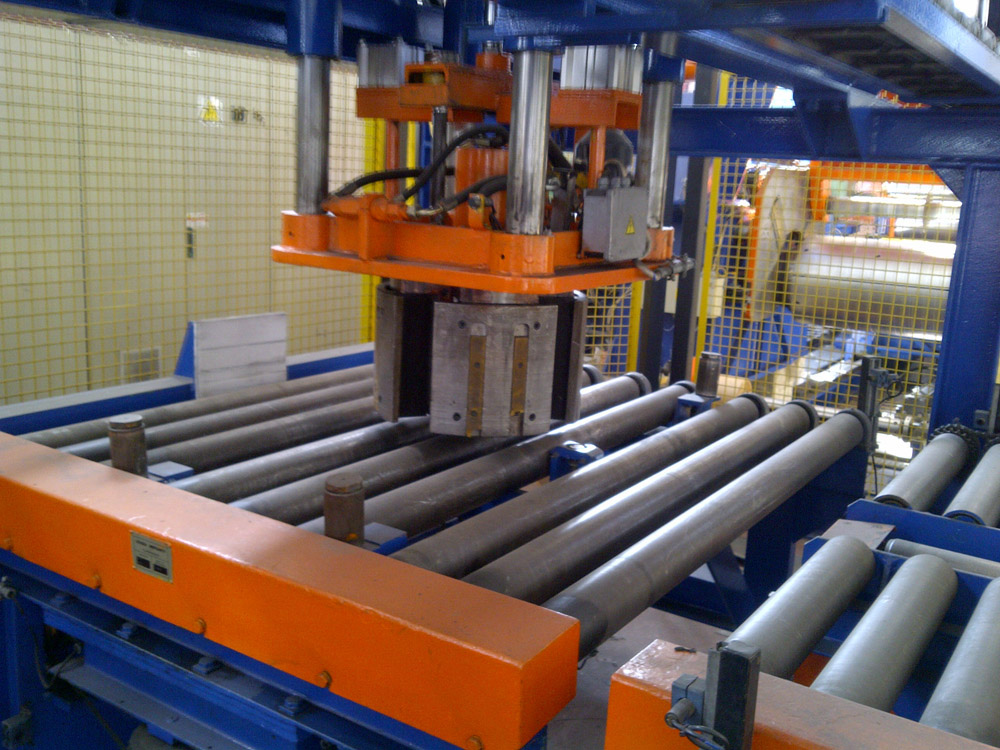

Item 8 Banding system, complete with auto. radial strapping by Signode and gantry-type robot
Item 9.1 Pneumatics
Item 9.2 Hydraulics
Item 9.3 Electrics with control panels

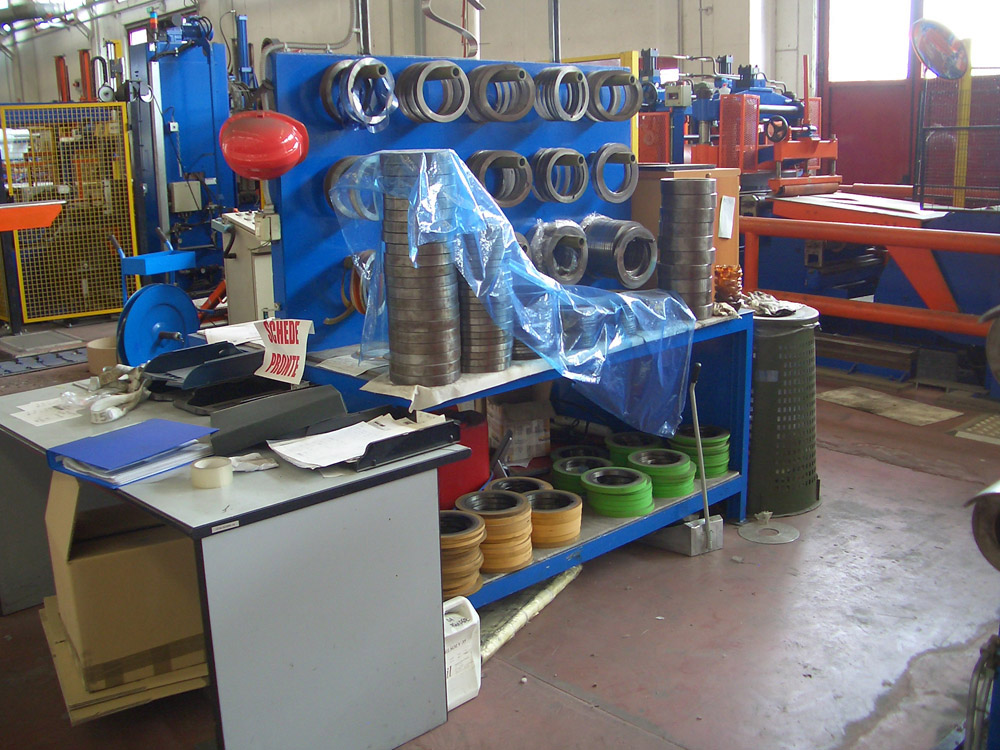

Item 10 Slitter tooling (circular knives, rubbers, spacers and separators)
Literature
Layout and foundation drawings
