SOLD
1
Used Dual Head Slitting Line
1524mm x 6.35mm
UMI/PRO-ECO
Used 1524mm x 6.35mm (60" x 1/4") UMI /ProEco Dual Head Slitting Line For Sale. The coil max. weight is 18 Ton. Line max. speed 180m / min.
Complete Line with Electrics, Operator Push Button Controls, Hydraulics, 4 Boxes of Tooling, Spares
A Used 1524mm x 6.35mm (60" x 1/4") UMI /ProEco Dual Head Slitting Line For Sale. Direction: Left to Right. The maximum line speed is 180m / minute. The Manufacturers: UMI & PRO-ECO. -- The line is complete with: Electrics, Operator Push Button Controls, Hydraulics, 4 Boxes of Tooling, Spares. -- Banding Line Available Separately. We sell US/Canada-built used equipment mainly by: ALCOS, Braner, Chicago Slitter, Herr-Voss, PRO-ECO, Red Bud; but also by e.g. Bradbury, Cincinnati, Lee Wilson, McKay, Paxson, STAMCO… when available.
Maximum Thickness: 6.35mm / .250"
Minimum Thickness: .6mm / .024”
Max Coil Weight: 18 Ton / 40,000lbs
Line Speed Range: 90m / min to 180m / min -- 300fpm to 600fpm (2 Speed Gearbox)
Line Direction: Left to Right
Complete Line with the Following Components:

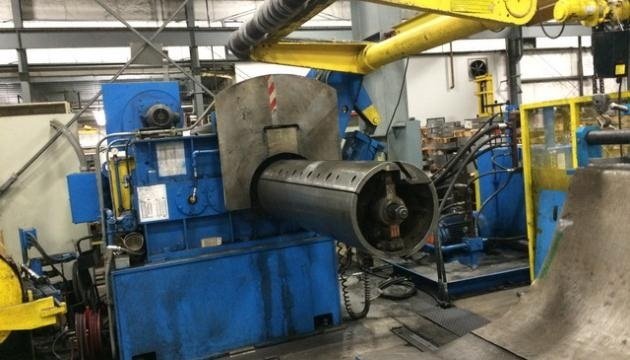

Entry L-Type Coil Car
Coil Weight: 40,000lbs
Self-Contained Hydraulics
64" Mandrel Face
20" - 24" Hydraulic Expansion
4 Leaf Mandrel
Powered Hold Down Roll
Full Width Hold Down Roll
Feed-Up Drive
Wichita Water Cooled Brake
Hydraulic Sliding Base
Air Clutch
Entry Edge Guides
UMI Entry Crop Shear
Down Cut Design
1/4" Max Thickness

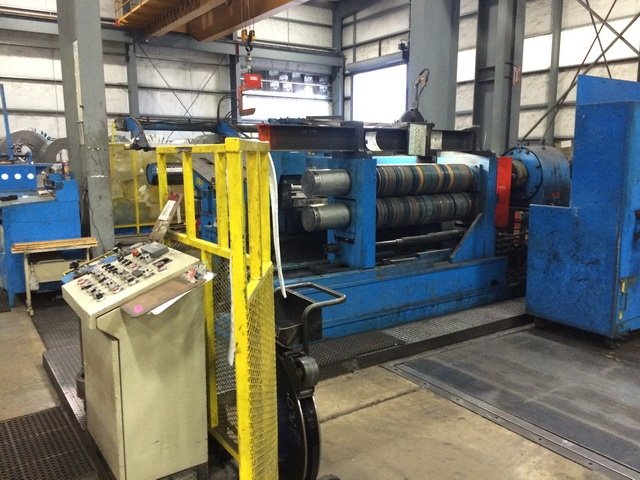

2 x UMI Slitting Heads
180mm / 7" Arbor Diameter
Arbor Sliding Outboard
1727mm / 68" Arbor Face
Crane Removal Design
30HP Motor Drive
Complementary Set of Knives, Rubbers, Shims and Spacers

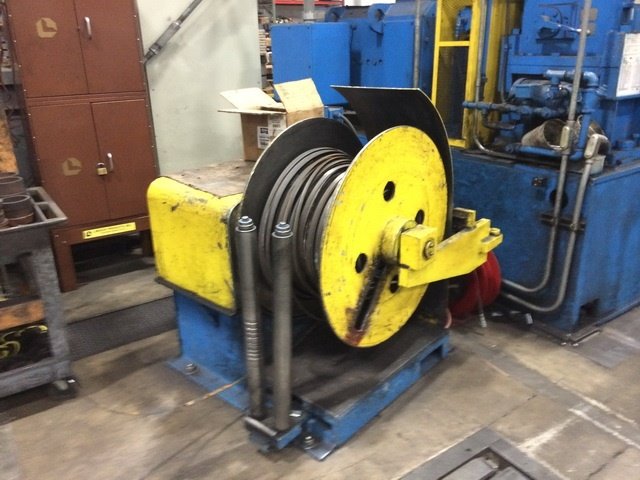

2 x Scrap Winders
Hydraulic Oscillating
Side Discharge Design
Cross Over Scissor Table
Pro-Eco Recoiler
Model# 055-4-62
72" OD
62" Drum Face
40,000lbs Coil Weight
Hydraulic Drum
Overarm Separator
2 Speed Gearbox (12.25 and 24.50 Ratios)
Hydraulic Push Off Plate
20" ID with Pads for 24" ID
250HP Motor Drive

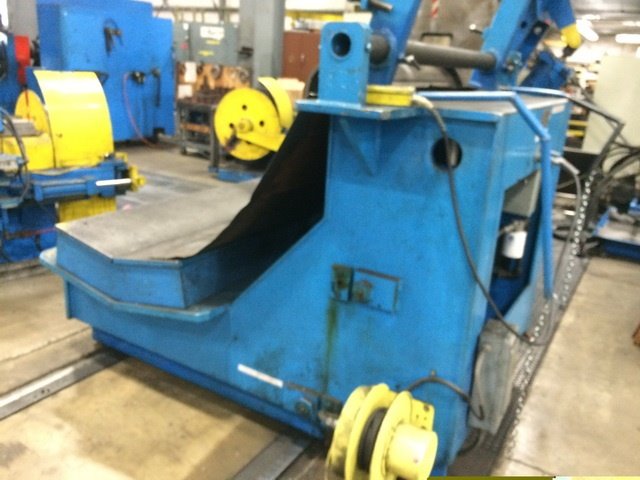

Floor Standing Exit Coil Car
40,000lbs Max Coil Weight
Self-Contained Hydraulics
Coil Keepers

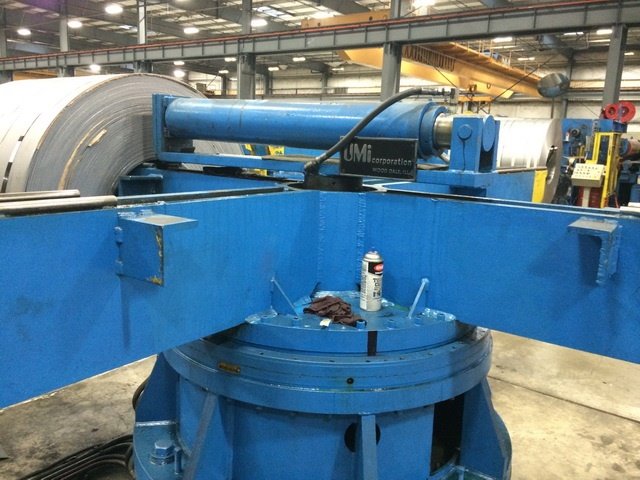

4 Arm UMI Exit Turnstile
40,000lbs Coil Weight per Arm
Hydraulic Push Off
C-Hook Slot
Powered Rotation
Complete Line with Electrics, Operator Push Button Controls, Hydraulics, 4 Boxes of Tooling, Spares.
Banding Line Available Separately
NOTE: THIS LINE IS SOLD "AS IS--WHERE IS" WITHOUT ANY WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ALL EQUIPMENT IS USED.
We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,
Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers,
Slitters, Strip Tension Stands, Turnstiles, Upenders ...
