New Hydr. Press Line For Collars, Elbows...

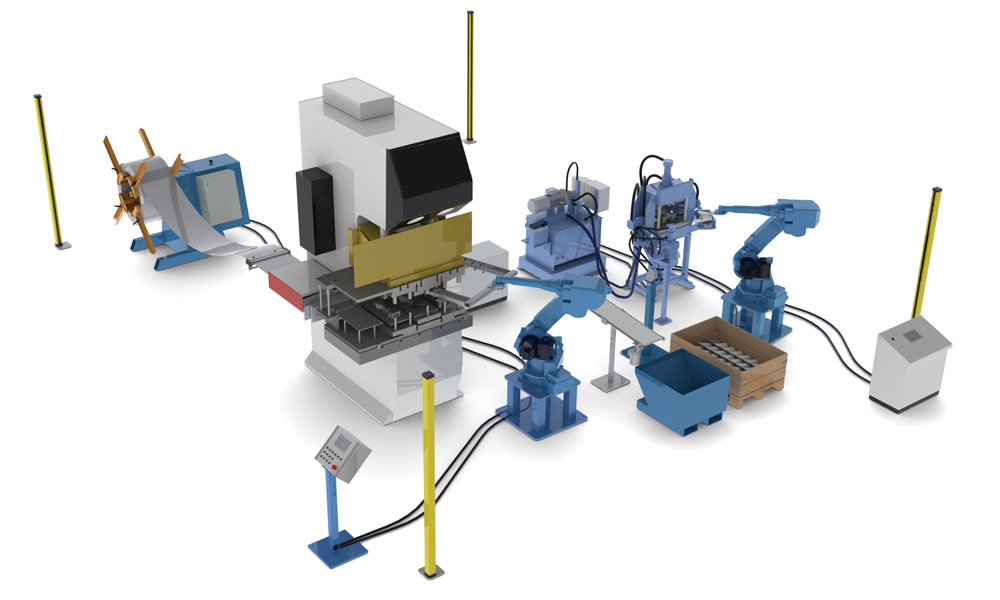

A "Typical" Hydraulic Press Line
F&P
BUILD TO ORDER CUSTOM DESIGNED
A "typical" line that we supply for fully-automatic manufacturing of seamed outlet collars and downspout elbows, gutter corners... is configurated as follows.
It includes:
-hydraulic press (or presses),
-all tooling,
-robotic parts handling,
-seaming machine/s (when required),
-and the line operation equipment.
Generally the materials are .55 – .60 mm galvanised and colour coated steel. Grade of steel: DX53D+Z or DX54D+Z.
EQUIPMENT LIST
DECOILER 2/3 TON
500mm mandrel drum
1.5 kW motor
ultrasonic sensor for directing the decoiler mandrel drum rotation
COIL CAR 2/3 TON
PNEUMATIC FEEDER
HYDRAULIC PRESS/ES & PRESS TOOLS
TOOL CHANGE ROLLER TABLE/S
1500 kN press - 11 kW
table dims. 750mm x 1000mm
ram stroke 400mm
all tools made of high quality tool steel, hardened, CNC-machined
PARTS HANDLING 6-AXIS ROBOT/S
(not for Products: "inner & outer gutter corner". These require manual handling)
max. parts weight 50 kg; max. distance for robotic handling 2051mm
for the robot area light curtains / mechanical safety equipment are provided
SEAMING MACHINE/S & ITS/THEIR RESP. VARIOUS TOOLS.
STD. EQUIPMENT COLOURS:
Frames : Blue RAL 5015
Covers : Black RAL 9005
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.
We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
