FLYING SHEAR CTL LINE 'LIKE NEW' STILL FOR SALE
09.2017
A "LIKE NEW" CUT TO LENGTH LINE FOR SALE: OFFERED SUBJECT TO BEING UNSOLD
"LIKE NEW" CUT TO LENGTH LINE, FLYING SHEAR TYPE, NEVER USED. CAPACITY: 500-1600mm x 3mm (2.5mm STAINLESS STEEL): OFFERED SUBJECT TO BEING UNSOLD. CURRENT LOCATION: MIDDLE EAST (WAREHOUSED). IN PERFECT CONDITION
We still have for sale, on behalf of a Client this good flying shear type cut to length line line NEVER USED that was built by
NOVASTILMEC
in 2011.
The line can process carbon steel and stainless steel coils, with weights up to 15 Tons, and material thicknesses from .5mm to max. 3.0mm / .4mm to max. 2.5mm for stainless steel.
The maximum speed is 60m / min.
Sheets up to 6m can be produced and stacked with a +/- .25mm length accuracy.
The line direction is left to right.
Line composition:
HYDR. COIL CAR, 15 t
DECOILER, 15 t
PHOTO-ELECTRIC EDGE GUIDE
HYDR. TELESCOPIC TABLE-PEELER
DEFLECTOR ROLL
ENTRY PINCH ROLLS
6-HI LEVELLER, 19-ROLL (WITH DIA. OF ROLLS: 45mm)
- QUICK EXTRACTION ROLL PACK
- "FELT" TYPE ROLL CLEANING SYSTEM
ELECTRONIC MEASURING SYSTEM
PVC-APPLICATOR (FROM TOP, 1-ROLL TYPE)
CONNECTION TABLE
ELECTRONIC FLYING SHEAR
EXIT BELT CONVEYOR
POWERED CONVEYOR, STATIC WITH PINCH ROLLS
DUAL-BOX AUTO. SHEET STACKER, 3000mm + 3000mm
SCISSOR-TABLE TYPE PACK-FORMING CONVEYOR, 3000mm + 3000mm
Coil ID 508mm and 610mm.
Coil max. OD 1800mm.
Minimum cut length 500mm.
Maximum sheet stack height 500mm including pallet.
Maximum stack weight 5 Tonne.
FULL LINE DESCRIPTION
We are in a position to re-install and commission the line in any Country (and, to provide for the line operator training as well):
TECHNICAL SERVICES
Very experienced service engineers support all equipment we sell. Their experience is such, that most brands of used equipment we deal can be serviced. The service provided probably is one of the best in the business.
All used cut to length lines that we propose are by good equipment builders, like NOVASTILMEC.

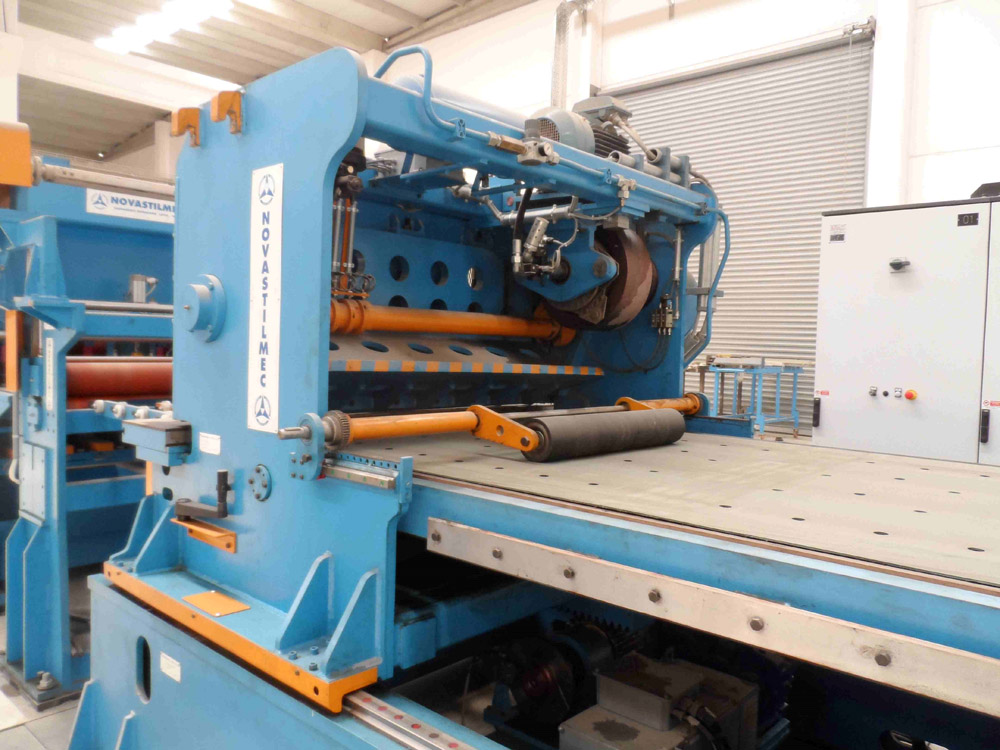

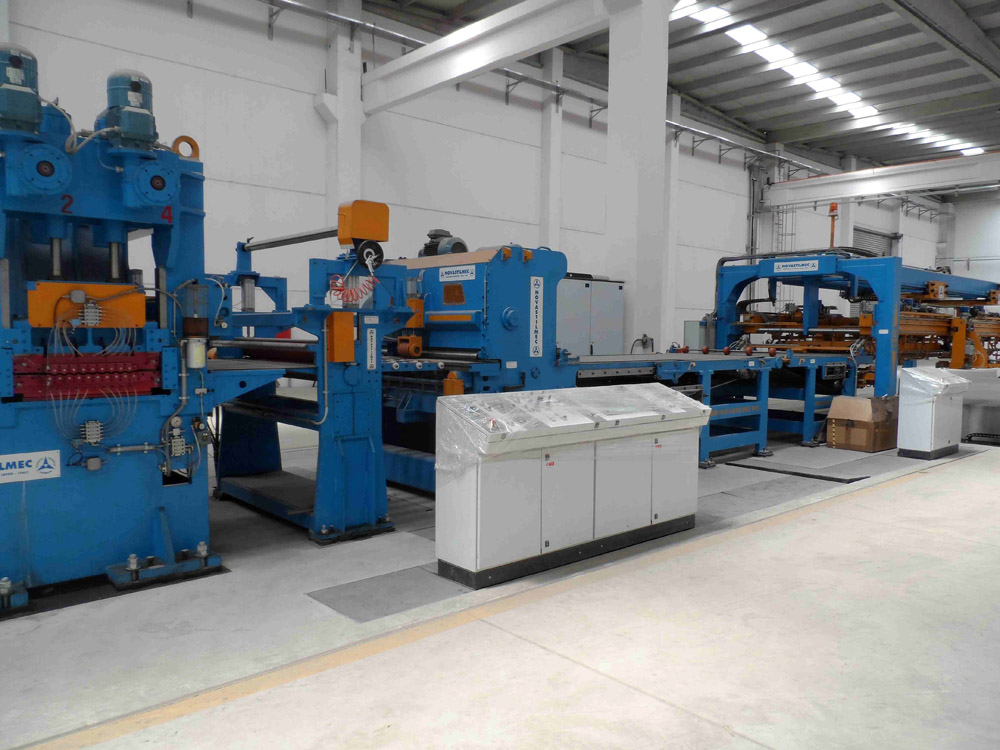

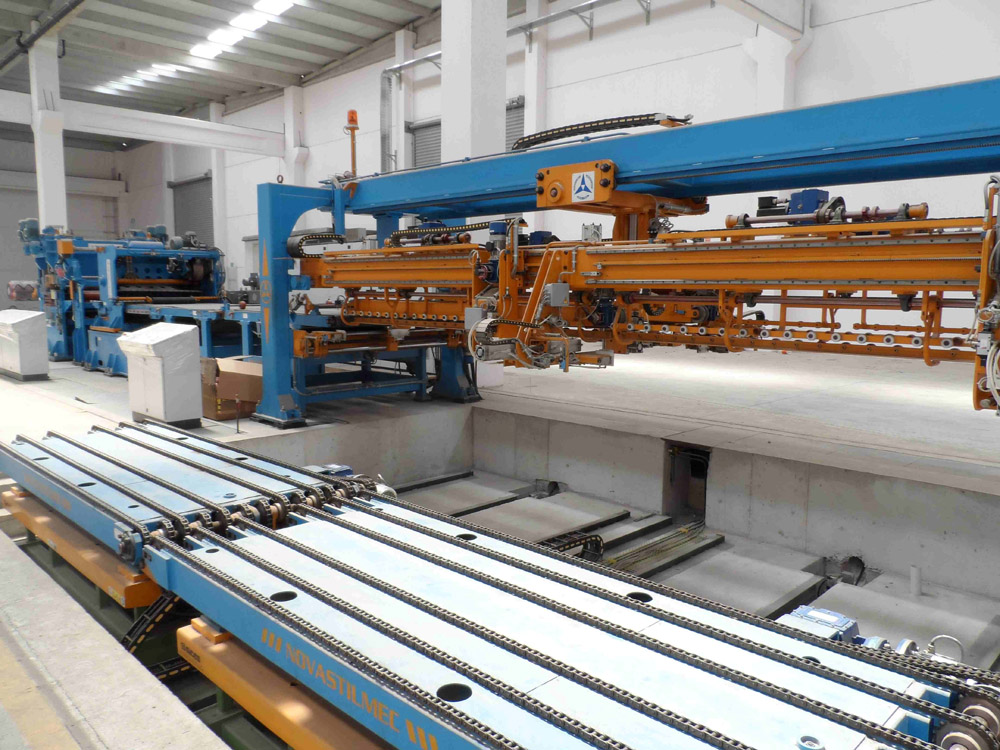

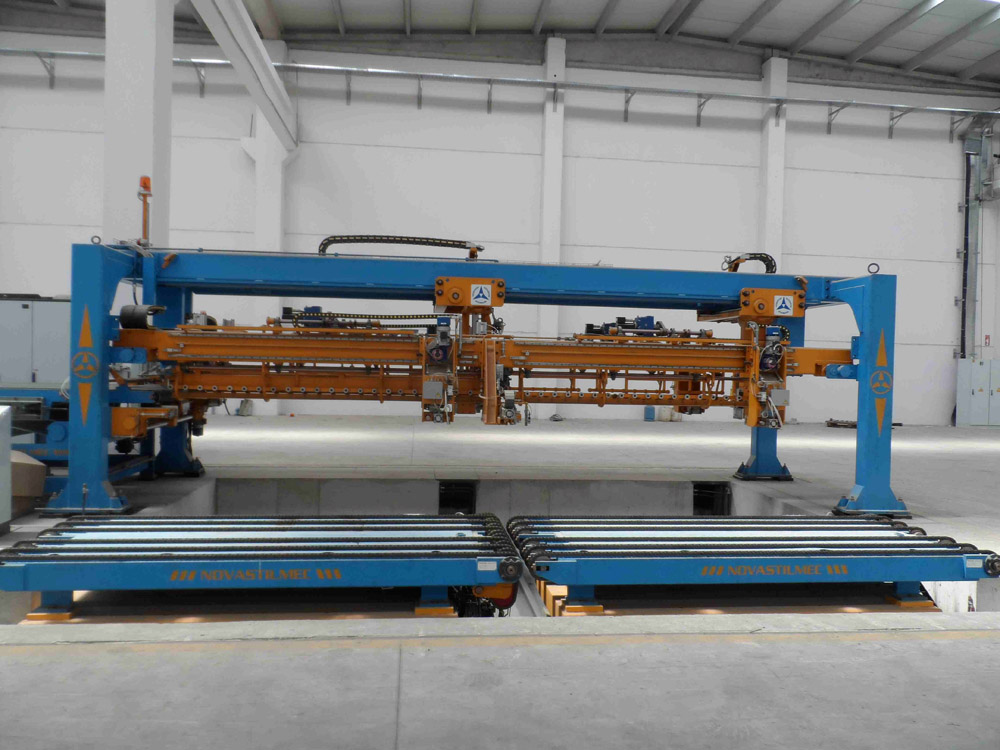

PHOTOS & IMAGES
