ALU. TENSION LEVELLING LINE
Alu. Tension Levelling Line STAMCO-HUNTER Used [#3427]
1
Used Alu. Tension Levelling Line
[TLL-191]
STAMCO-HUNTER
FOR SALE
OFFERED SUBJECT TO BEING UNSOLD
Used STAMCO-HUNTER Tension Levelling Line of 1974, for sale. Coil width 1422mm max. and material thickness 1.6mm max. Coil max. weight 6.8 MTon. --- Sold EXW off foundation, in warehouse storage.
A used Light Gauge Aluminium Tension Levelling Line for sale by STAMCO-HUNTER. New in 1974, decommissioned 2011, dismantled 2012. The max. coil width is 1422mm and the max. material thickness 1.6mm. Coil max. weight 6.8MTon. --- Sold EXW off foundation, in warehouse storage.
STAMCO (HERR-VOSS STAMCO) offer quality coil processing solutions: levelling technology, slitting, cut-to-length/blanking… HUNTER (DANIELI FATA HUNTER) are worldwide suppliers of turn-key plants and single-equipment for the non-ferrous metal and steel industries.
The line
Manufacture
Stamco-Hunter, new 1974
Previous Use
Aluminium lithographic coil
Strip Thickness
.005 - .063" 0.127 - 1.6 mm
Strip Width
56" max 1422 mm
Coil Size
Entry ID - 10 & 20" ID cores
Entry OD - 60" max 1524 mm
Exit OD - 47" max 1193 mm
Weight - 15,000lbs max 6.8 mton
Equipment list
- Uncoiler
Double-stud type
10" & 20" ID steel cores
Hydraulic expansion
Sliding base
100hp DC motor, 300-1800rpm regen brake
- Entry Crop Shear
.050" x 62" capacity
Hydraulic operation
- Strip Joining Press
100-ton unit with 72" wide die
- Entry Bridle
4-roll unit
21" diam x 62" face rolls
3 driven rolls
1 non-driven passline roll
- HerrVoss Flex-Roll Section
.003-.100" design capacity
300-600fpm line speed capacity
5 roll cassettes (2 over 3)
2" diam work rolls
5.75" backup rolls
66" roll face
Entry passline roll - 8" diam
Exit pinch rolls - 8" diam
- Exit Bridle
Same as entry bridle above
- Strip Thickness Gauge
Non-contact type
- Exit Crop Shear
.050" x 62" capacity
Hydraulic operation
- Recoiler
Mandrel type
Hyd expansion & pushoff
Sliding base, edge guide
200hp DC drive

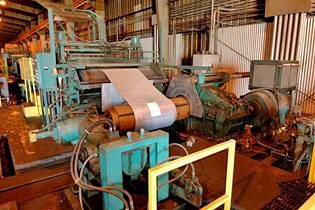

PHOTOS & IMAGES
