ROLLER LEVELLER
Roller Leveller LISSE Used [#3461]
1
Used Roller Leveller
1650mm x 1mm 4-HI
LISSE
FOR SALE
OFFERED SUBJECT TO BEING UNSOLD
stock; will completely be revamped
USED LISSE 4-HI LEVELLER – 1650mm x .15-1.0mm (.8 mm with Rm = 650 N/mm2) – 23 WORK ROLLS / ROLL LENGTH 1750mm – SPEED: 25m / min
A GOOD USED THIN-GAUGE LEVELLER BY LISSE OF FRANCE, SUITABLE FOR MATERIAL (PERFORATED METAL SHEETS IN PARTICULAR) UP TO 1600mm WIDE x .15--.8(1.0)mm THICK. 23-ROLL, 4-HI TYPE MACHINE WITH DIA. 25mm WORK ROLLS. MAX. SPEED 25m / min, AC DRIVE MOTOR
1. MACHINE DESCRIPTION
Manufacturer : LISSE
Roll length : 1750mm
Material thickness: .15mm – .8 mm with Rm = 650 N/mm2
Work rolls : 23 with roll dia. 25mm
Back-ups: 9 + 9
Motion of back-ups: manually operated
Entry-exit (tilting): manual
Up-down motion: by AC motors
Passline height: 1050mm
Workspeed max.: 25m / min
Main drive motor: AC, 15 kW
Centralized oil lubrication for gearbox
Grease lubrication for the work rolls: by hand-pump (NEW)
2. CONDITIONS OF SUPPLY
The machine will be delivered after complete revamping, including:
- complete overhauling of mechanics with
- NEW work rolls (the existing roll set will get re-ground and will be delivered for use of “spare parts”)
- regrinding of back-ups
- full check-up of all bearings, and replacement of any damaged/worn-out parts
- check-up and cleaning of gearboxes, disposal of exhausted oil
- full cleaning and re painting with any wanted paint colours by the buyer
- NEW oil lubrication equipment, with new filter etc.
- NEW grease lubrication equipment.

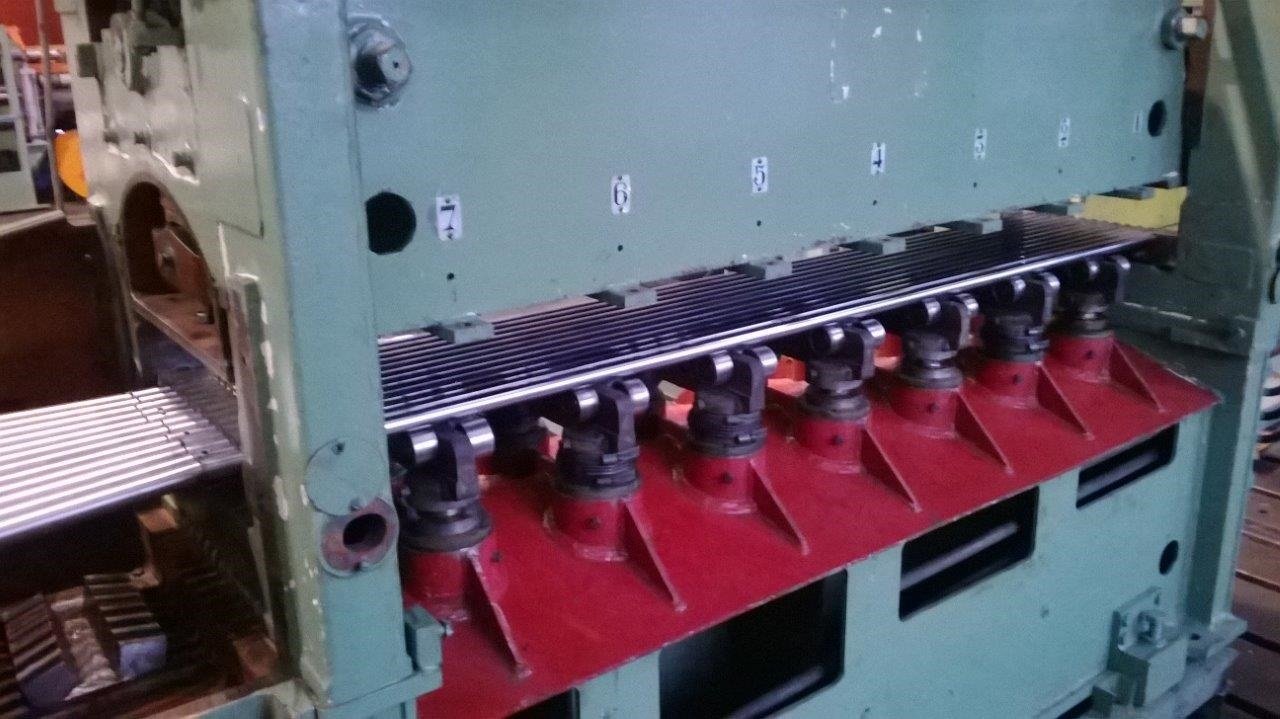

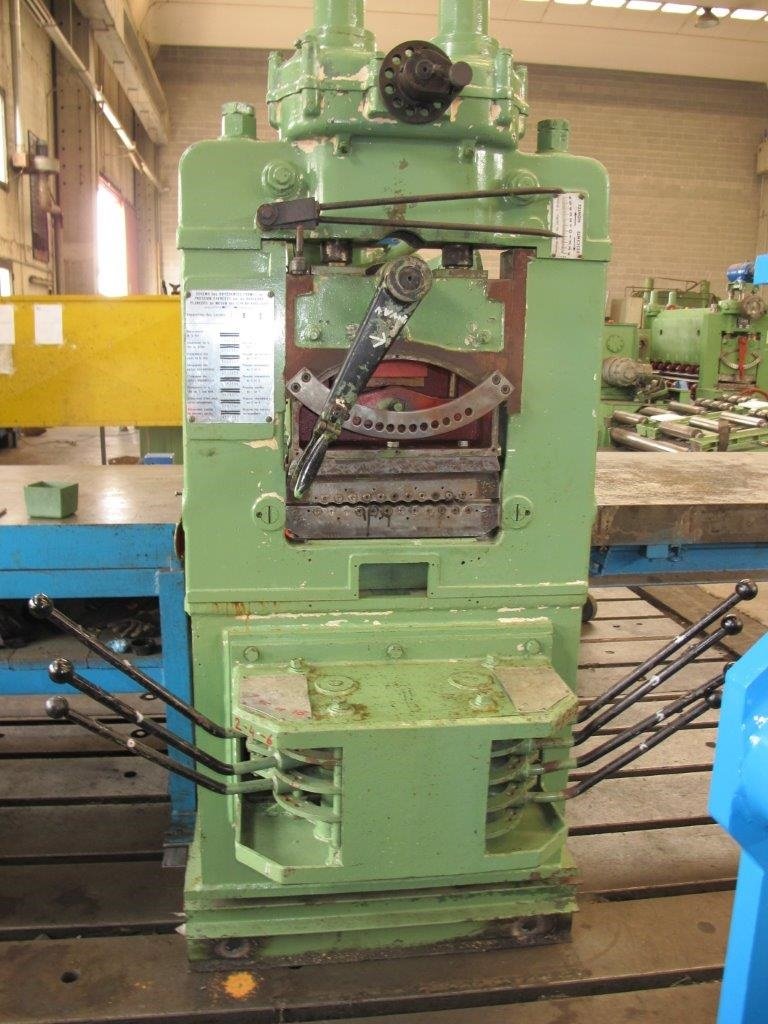

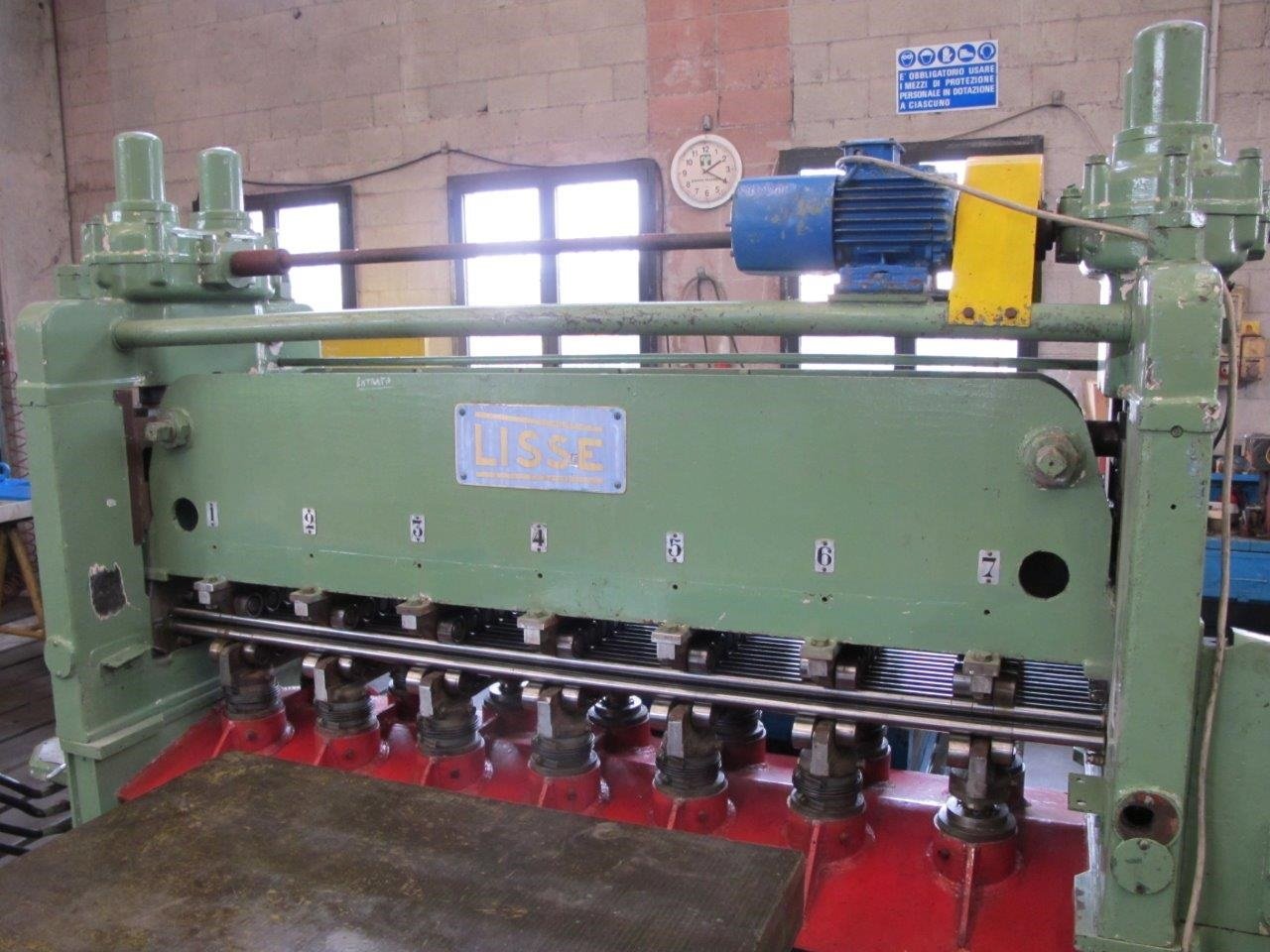

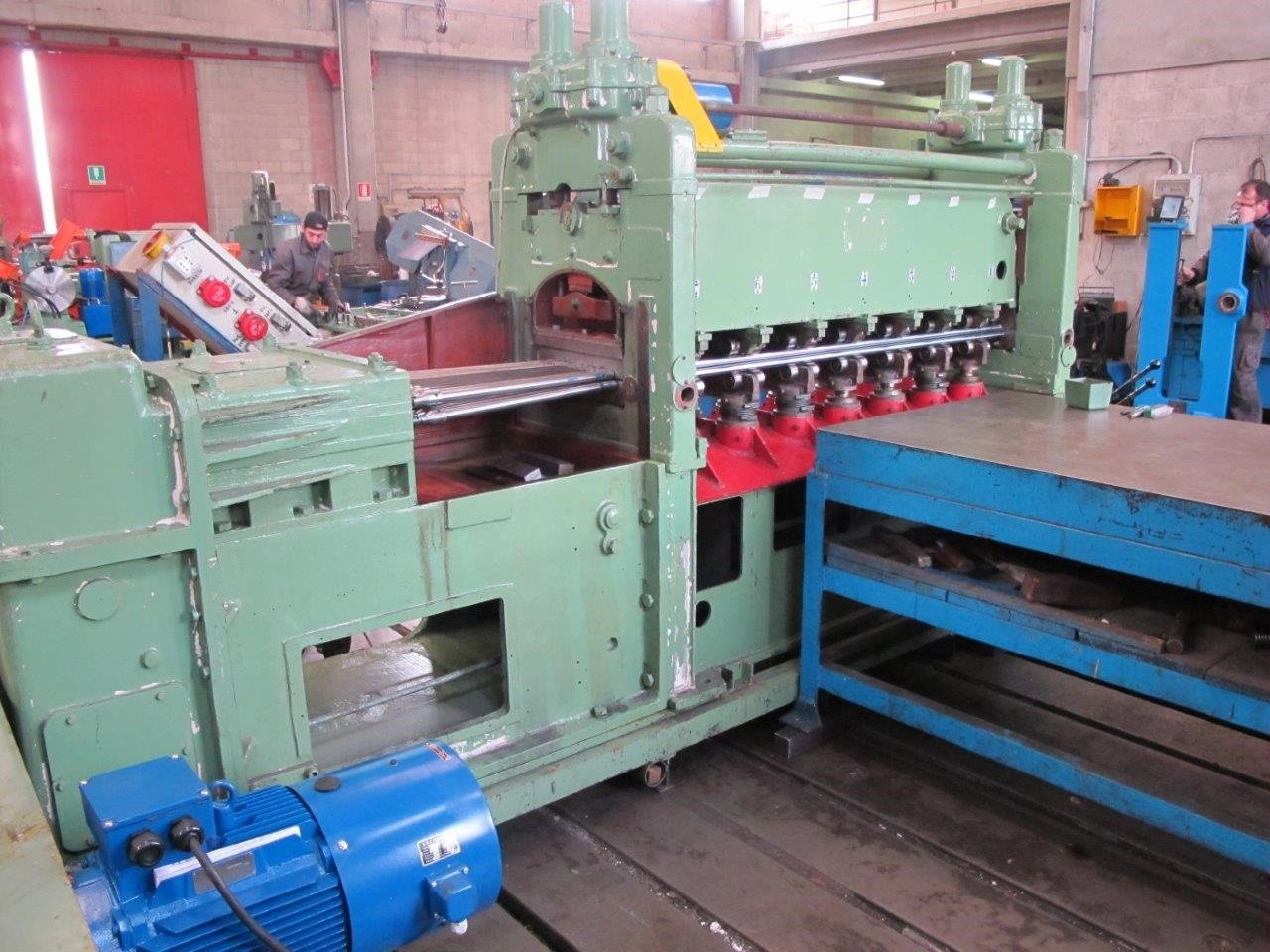

PHOTOS & IMAGES
